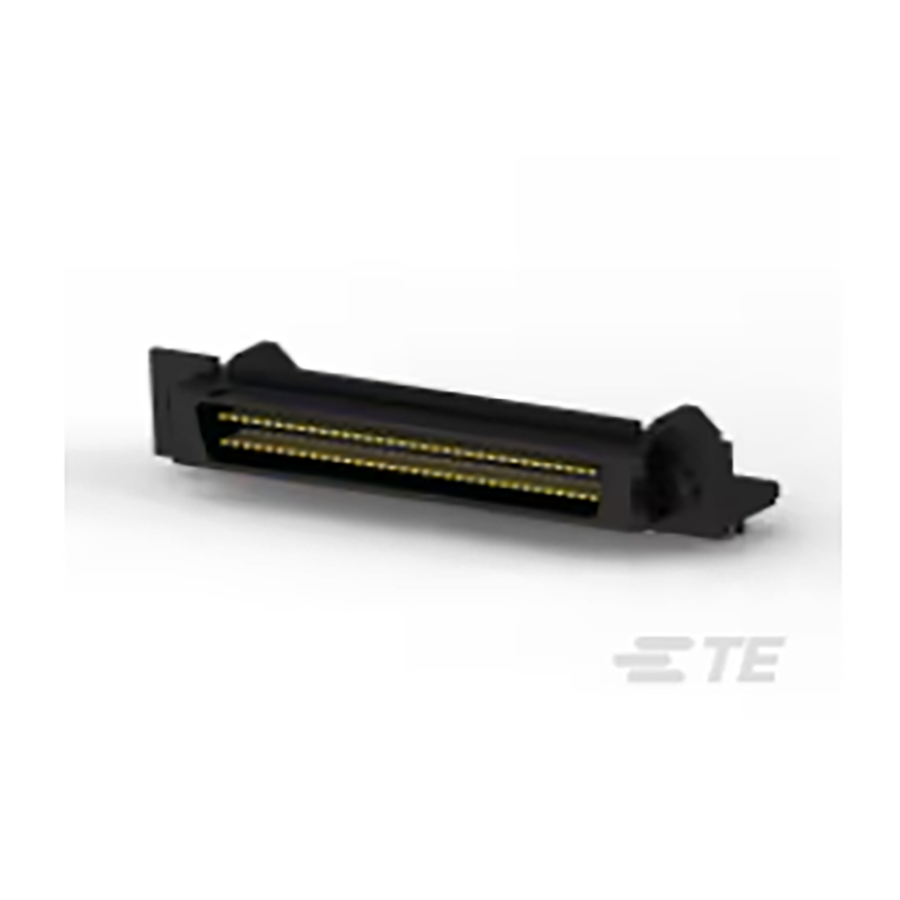

2-5174341-5
Manufacturer:
TE Connectivity
Mfr.Part #:
2-5174341-5
Datasheet:
Description:
D-Sub Connectors Through Hole Cap, Male Pins Number of Positions:68 Solder Male
| Parameter | Value |
|---|---|
| Length | 63.9 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 68 |
| Packaging | Tray |
| Voltage Rating | 100 V |
| Depth | 17.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Features | Shielded |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Type | Cap, Male Pins |
| Number of Terminals | 68 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Shielding | Shielded |
| Number of Contacts | 68 |
| ELV | Compliant |
| Connector Type | Connector, Plug |
| Contact Type | Signal |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Copper, Nickel |
| PCB Mounting Orientation | Horizontal |
| Contact Shape | Square |
| Shell Material | Zinc |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 288
Distributors
pcbx
pcbxUnit Price$22.08669
Ext.Price$22.08669
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $22.08669 | $22.08669 |
| 10 | $20.36259 | $203.62590 |
| 25 | $18.77307 | $469.32675 |
| 50 | $17.30763 | $865.38150 |
| 100 | $15.95646 | $1595.64600 |
